ROSTA-Spannelemente

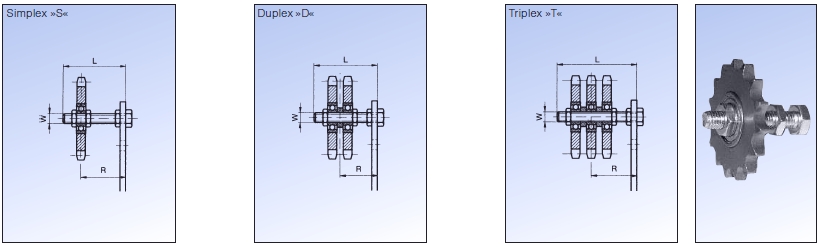

Kettenradsatz Typ N
| Art.-Nr. | Typ | Rollenkette DIN 8187 |
Zähnezahl | W | L | Anzieh- moment Nm |
R | Spannelemt SE/SEF |
Gew. in kg | CAD DOWNLOAD |
|---|---|---|---|---|---|---|---|---|---|---|
| Simplex «S» | ||||||||||
| 06510001 | N3/8"-10S | ISO06B-1 | 15 | M10 | 55 | 20 | 22-43/23-43 | 15,18 | 0,15 | CAD |
| 06510002 | N1/2"-10S | ISO08B-1 | 15 | M10 | 55 | 20 | 23-44 | 18 | 0,20 | CAD |
| 06510003 | N5/8"-12S | ISO10B-1 | 15 | M12 | 80 | 35 | 27-65 | 27 | 0,35 | CAD |
| 06510004 | N3/4"-12S | ISO12B-1 | 15 | M12 | 80 | 35 | 27-65 | 27 | 0,55 | CAD |
| 06510005 | N3/4"-20S | ISO12B-1 | 15 | M20 | 100 | 172 | 40-80 | 38 | 0,85 | CAD |
| 06510006 | N1"-20S | ISO16B-1 | 13 | M20 | 100 | 172 | 40-80 | 38 | 1,25 | CAD |
| 06510007 | N11/4"-20S | ISO20B-1 | 13 | M20 | 100 | 172 | 40-80/48-80 | 45,50 | 2,00 | CAD |
| 06510008 | N11/2"-20S | ISO24B-1 | 11 | M20 | 140 | 172 | 40-120/48-120 | 45,50 | 2,35 | CAD |
| Duplex «D» | ||||||||||
| 06520001 | N3/8"-10D | ISO06B-2 | 15 | M10 | 55 | 20 | 27-39/28-39 | 15,18 | 0,20 | CAD |
| 06520002 | N1/2"-10D | ISO08B-2 | 15 | M10 | 55 | 20 | 30-37 | 18 | 0,35 | CAD |
| 06520003 | N5/8"-12D | ISO10B-2 | 15 | M12 | 80 | 35 | 36-57 | 27 | 0,60 | CAD |
| 06520004 | N3/4"-12D | ISO12B-2 | 15 | M12 | 80 | 35 | 37-56 | 27 | 1,05 | CAD |
| 06520005 | N3/4"-20D | ISO12B-2 | 15 | M20 | 120 | 172 | 50-90 | 38 | 1,35 | CAD |
| 06520006 | N1"-20D | ISO16B-2 | 13 | M20 | 120 | 172 | 55-84 | 38 | 2,10 | CAD |
| 06520007 | N11/4"-20D | ISO20B-2 | 13 | M20 | 140 | 172 | 60-120/68-120 | 45,50 | 3,60 | CAD |
| 06520008 | N11/2"-20D | ISO24B-2 | 11 | M20 | 140 | 172 | 65-97/73-97 | 45,50 | 4,25 | CAD |
| Trplex «T» | ||||||||||
| 06530001 | N3/8"-10T | ISO06B-3 | 15 | M10 | 70 | 20 | 33-48 | 18 | 0,25 | CAD |
| 06530002 | N1/2"-12T | ISO08B-3 | 15 | M12 | 80 | 35 | 41-51 | 27 | 0,50 | CAD |
| 06530003 | N5/8"-12T | ISO10B-3 | 15 | M12 | 80 | 35 | 43-50 | 27 | 0,95 | CAD |
| 06530004 | N5/8"-20T | ISO10B-3 | 15 | M20 | 120 | 172 | 56-84 | 38 | 1,25 | CAD |
| 06530005 | N3/4"-20T | ISO12B-3 | 15 | M20 | 120 | 172 | 59-80 | 38 | 1,50 | CAD |
| 06530006 | N1"-20T | ISO16B-3 | 13 | M20 | 160 | 172 | 74-108 | 45 | 2,90 | CAD |
| 06530007 | N11/4"-20T | ISO20B-3 | 13 | M20 | 160 | 172 | 78-105/86-105 | 45,50 | 5,20 | CAD |
| 06530008 | N11/2"-20T | ISO24B-3 | 11 | M20 | 180 | 172 | 90-111/98-111 | 45,50 | 6,20 | CAD |
